Target Transport Systems Indoor / Outdoor

The target transport systems are mainly designed for manual targets. They range from 10 m to 150 m and are used for crossbow, air rifle/rifle and hunting weapons.

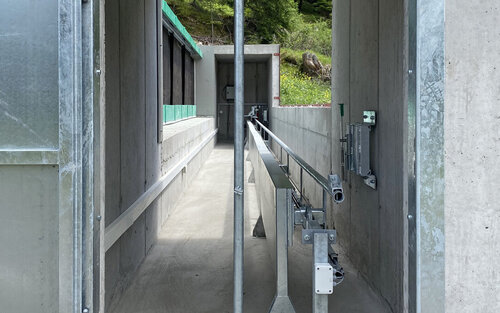

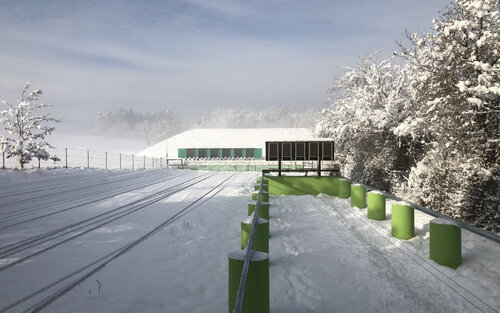

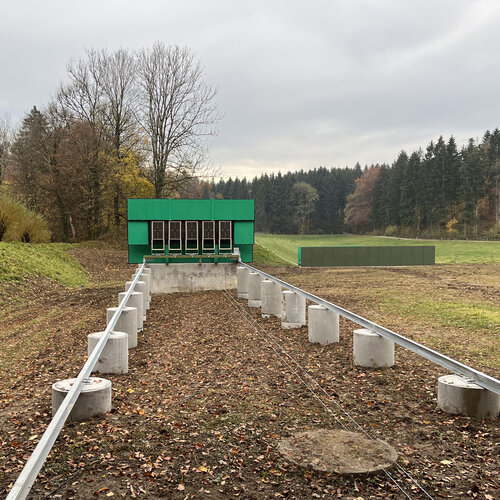

100 - 150 m hunting transport system

The hunting target transport system with attached manual target moves by means of control on support wires to the 100 m or 150 m position. The targets can be equipped with different images.

Distance: 100 m and 150 m

Target type: hunting targets

System

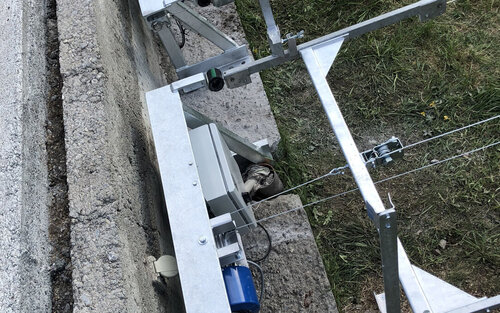

  • Pulley system with frequency controlled drive
  • Traversing device possible
  • Support wires made of stainless steel
  • Access ramp in target and shooter area
  • Corrosion resistant construction

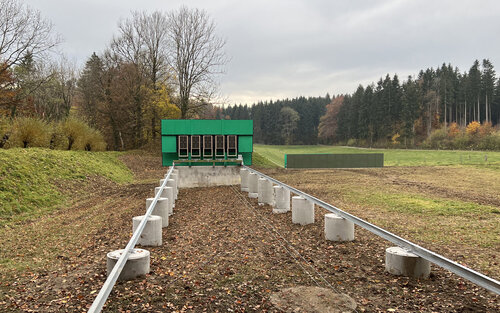

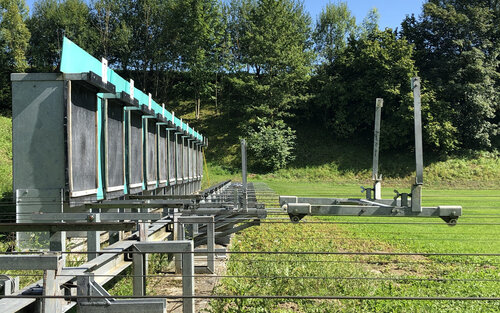

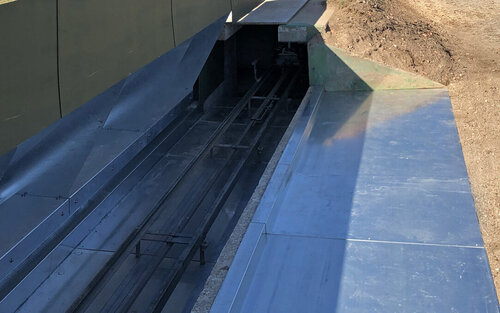

Cross Running Boar

The cross running boar unit travels on a rail and is equipped with a turning function. It can be used in both directions. Thanks to electronic score display, the result is immediately communicated to the shooter.

Distance: 40 m, 60 m and 80 m

Target type

  • Double sided reversible target boar
  • Compatible with electronic target from Polytronic and SIUS

System

  • Rail running system with frequency controlled drive
  • Turning device for target running on both sides of the track
  • Carriage with holder for electronic target
  • Corrosion resistant construction

Local Work

  • Covered discharge areas in the target turning area
  • Standard aisle opening 10 m
  • Concrete base for bolting of the running rails
  • Electrical supply lines

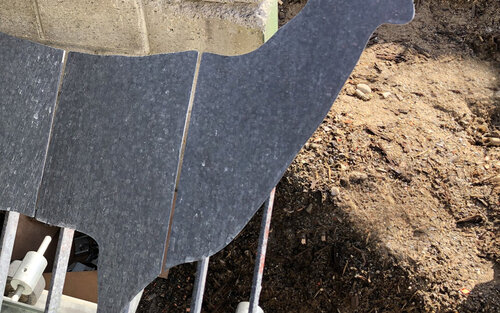

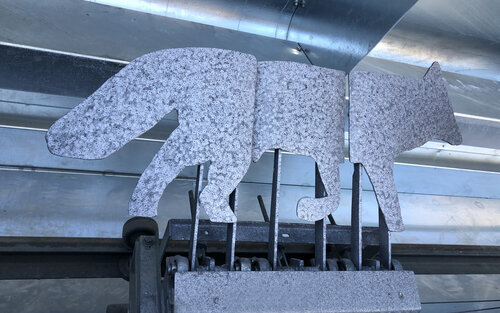

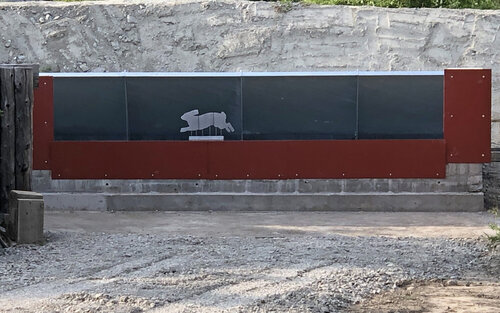

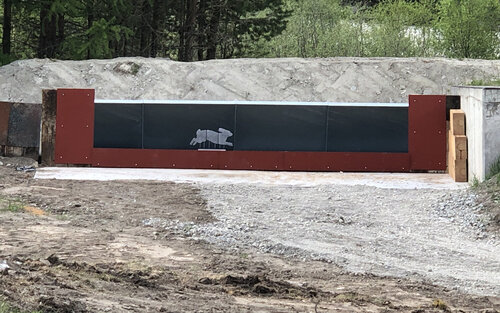

Cross Running Rabbit/ Deer / Fox

The cross-running single or double unit travels on a rail and can be equipped with a rabbit, deer or fox segments.

Distance: 30 m

Caliber: Lead shot only, no steel bullets

Target type: Interchangeable steel segments HB 450 for rabbit, deer or fox

System

  • Rail running system with frequency controlled drive
  • Carriage with interchangeable segments divided into head, belly and rear part
  • Segments fold down to the back when hit succesfully
  • Segments are automatically returned to their initial position in the run-out area
  • The tilting sensitivity of the segments can be adjusted on the tilting holder.
  • Corrosion-resistant construction

On-site work

  • Side-covered run-out areas
  • Standard aisle opening 6 m
  • Concrete base for bolting the running rails
  • Electrical supply according to specifications

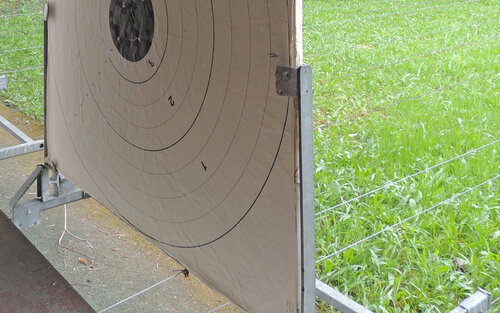

50 m Target Transport Systems

The target transport system for pistols with mounted target moves by means of control on support wires from the shooter to the 50 m position. The system can be equipped with a loading bench.

Distance: 50 m

Target type

  • Pistol change target B/5/10 50 m
  • Pistol target P/4/10 50 m

System

  • Pulley system
  • Frequency controlled drives
  • Stainless steel support wires
  • Drive-on trestle in target and shooter area
  • Corrosion resistant construction

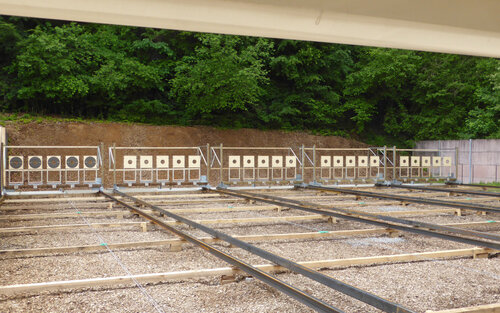

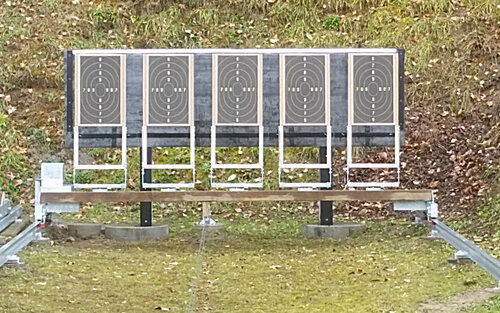

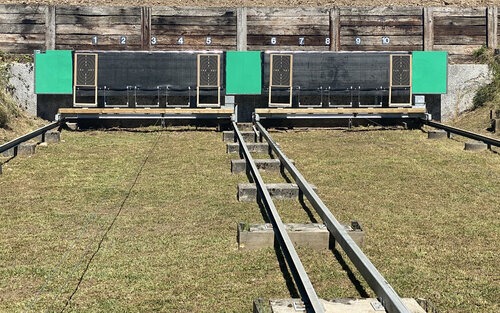

25 m Target Transport System

The driving turning target system is equipped with five manually rotatable ISSF or Ordonnanc targets. The system is operated by means of a control system. Different shooting programs can be saved and recalled. The carriage is moved by the shooter to the 25 m position by means of a pull rope.

Distance: 25 m

Target type

  • Ordonnanc target 25 m 1250 mm x 550 mm
  • Ordnnanc target 25 m with interchangeable system 1250 mm x 550 mm
  • ISSF Rapid fire target 25 m 1125 mm x 550 mm
  • ISSF rapid fire target 25 m interchangeable system 1125 mm x 550 mm
  • Pistol precision target 25m 1250 mm x 550 mm
  • Pistol precision target 25m interchangeable system 1250 mm x 550 mm

System

  • Rail transport system
  • Carriage with five turntables, extension or shortening possible
  • Corrosion resistant construction
  • Possibility to rent the system

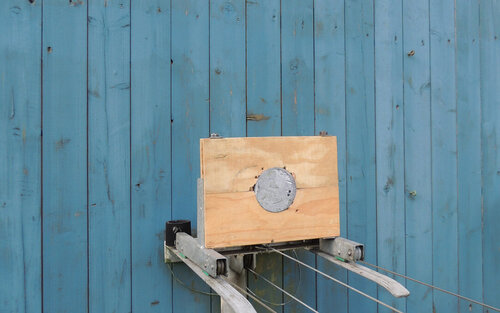

30 m Target Transport System Crossbow

The target transport system for crossbow with mounted target moves by means of control on support wires from the shooter to the 30 meter position. The system can be equipped with a loading bench.

Distance: 30 m

Target type: woodentarget with lead insert in the center

System

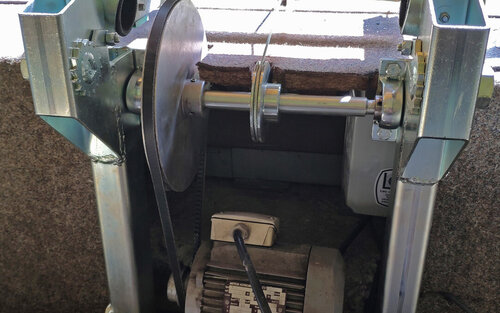

  • Pulley system
  • Stainless steel support wires
  • Drive-on trestle in target and shooter area
  • Corrosion-resistant construction
  • Possibility to rent the system

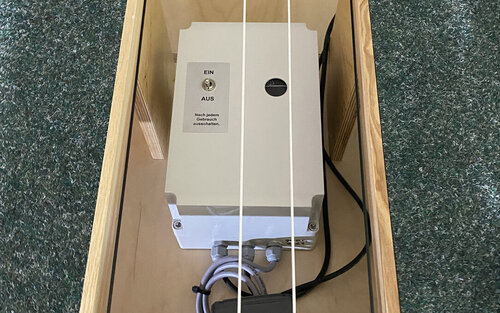

Electrical specifications

  • Operating voltage: 3 x 400/230 VAC
  • Type 15 / 10 Ampere
  • 0,2 kW

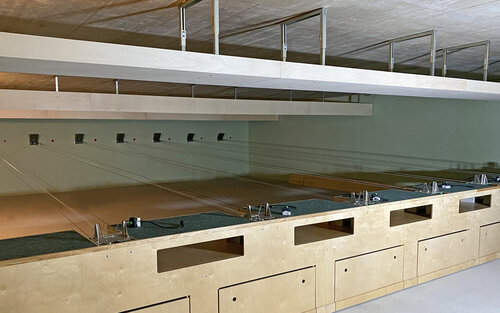

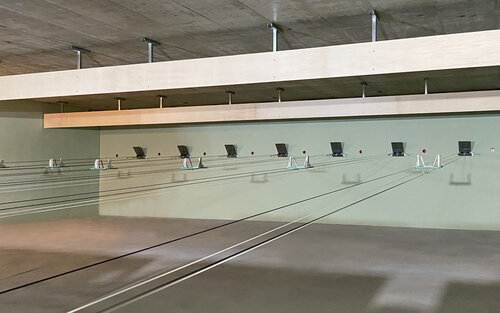

10 m Target Transport System

Target transport system for air rifle, air pistol and crossbow. The transport carriage travels on support wires from the shooters to the 10 m position by means of a control system. The bullets are caught by a bullet trap. The equipment can be equipped with a loading bench, lighting, lounger planks and more.
